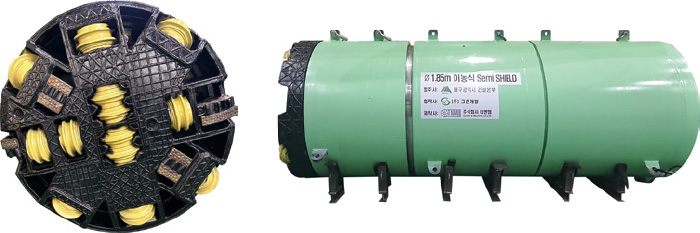

Specifications / 신규제작
| Cutter Head Diameter |
D = 1,810 mm |
| Casing Diameter |
D = 1,810 mm |
| Cutter Torque |
Max 135,27 kNㆍm |
| Cutter RPM |
0~7.92 rpm |
| Main Power |
110kW (55kW x 2ea) |
| Articulation Jack Force |
2,600 kNㆍm (650 kNㆍm) |
| 장비 제작사 |
㈜티엔엠 |
| 장비 보유사 |
㈜그린개발 |
Specifications / 장비 개조 제작
| Cutter Head Diameter |
D = 1,810 mm |
| Casing Diameter |
D = 1,810 mm |
| Cutter Torque |
- |
| Cutter RPM |
0~9.0 rpm |
| Main Power |
37kW x 4EA (148kW) |
| Articulation Jack Force |
3380kN (845kN) |
| 장비 보유사 |
㈜AJ지오텍 |

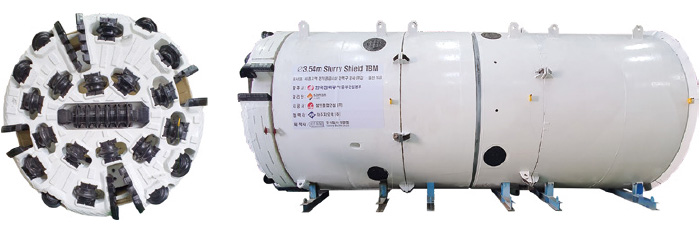

Specifications / 장비 개조 제작
| Cutter Head Diameter |
D = 3,550 mm |
| Casing Diameter |
D = 3,540 mm |
| Cutter Torque |
Max 1350 kNㆍm |
| Cutter RPM |
0~8 rpm |
| Main Power |
640kW (90kW x 7ea) |
| Shield Jack Total Thrust (each Thrust) |
18,000 kNㆍm (1,500 kNㆍm) |
| 장비 보유사 |
㈜AJ지오텍 |
Specifications / 장비 개조 제작
| Cutter Head Diameter |
D = 5,250 mm |
| Casing Diameter |
D = 5,220 mm |
| Cutter Torque |
Max. 4000 kNㆍm |
| Cutter RPM |
Max. 5 rpm |
| Main Power |
1080kW (180kW x 6ea) |
| Shield Jack Total Thrust (each Thrust) |
24,000 kNㆍm (1,500 kNㆍm) |
| 장비 보유사 |
㈜AJ지오텍 |
Specifications / 장비 개조 제작
| Cutter Head Diameter |
D = 1,810 mm |
| Casing Diameter |
D = 1,810 mm |
| Cutter Torque |
Max. 4000 kNㆍm |
| Cutter RPM |
Max. 5 rpm |
| Main Power |
110kW (55kW x 2ea) |
| Articulation Jack Force |
2,400kN |
| 장비 보유사 |
한미지오텍 |
Specifications / 장비 개조 제작
| Cutter Head Diameter |
D = 2,850 mm |
| Casing Diameter |
D = 2,825 mm |
| Cutter Torque |
- |
| Cutter RPM |
Max. 9 rpm |
| Main Power |
320kW (160kW x 2ea) |
| Articulation Jack Force |
2,940kN |
| 장비 보유사 |
강릉건설 |
